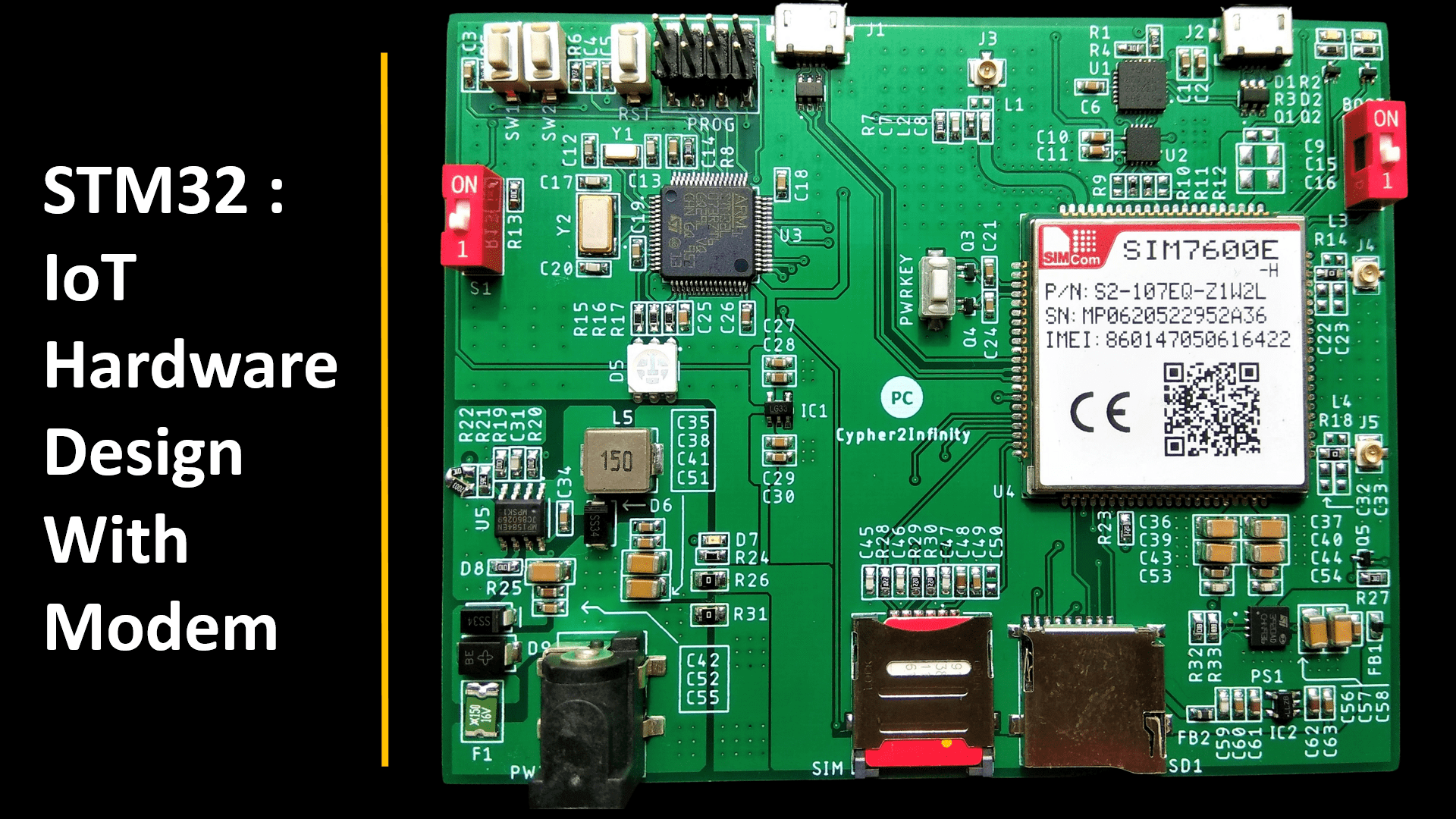

STM32 : IOT Hardware Design With Modem

PC By Piyush Charpe     Course level: Beginner


Hardware Design



Training Overview

  • An industrial application specific training that prepares you for the industrial projects

  • Covers an end to end hardware development & programming process for an industrial device with a step by step approach.

  • It covers several industrial interfaces for process automation & wireless modules for remote monitoring & controlling.

  • It uses Eagle software for PCB designing & Arduino IDE for programing the hardware

  • It shows how to connect hardware to the internet to make an IOT device.


This training is the most detailed hardware training available on the platform. It is all about system design for Internet Of Things applications using cellular connectivity.

This training goes beyond just PCB design. It covers all the things that a hardware design engineer has to follow in their professional life to create a product.

The hardware taught in this training is based on a microcontroller from ST Microelectronics which is most widely used by professionals in industrial applications. For cellular connectivity, we will be using a 4G LTE Modem from SIMCOM.

The hardware taught in this training is based on a microcontroller from ST Microelectronics which is most widely used by professionals in industrial applications. For cellular connectivity, we will be using a 4G LTE Modem from SIMCOM.

Key Skills you will learn

  • Circuit Design

  • PCB Design

  • Hardware testing

  • Industrial interfaces

  • Hardware cloud integration

  • Remote monitoring, controlling & data logging

  • Application specific programing

This training is divided in three sections and covers the detailed design procedure in their respective sections.

  • Power Supply Section

    • a.

      Switch Mode Power Supply

    • b.

      Li-Ion Battery Charger

    • c.

      Low Dropout Regulator (LDO)

  • STM32 Microcontroller Section

  • 4G LTE Modem Section

    • a.

      Modem Power Supply Design

    • b.

      Modem ON/OFF mechanism

    • c.

      Modem UART Interface

    • d.

      Modem USB 2.0 Interface

    • e.

      Modem USIM Interface

    • f.

      Modem SD Card Interface

    • g.

      Modem Network & Status

    • h.

      Modem Antenna : Mains & Diversity

    • i.

      Modem Antenna : GNSS

    • j.

      Modem DFU (Device Firmware Upgrade)

Every one of these sections follows the same structure:

  • Introduction to section

  • Datasheet explanation

  • Circuit design explanation

  • Components selection

  • Schematic design

  • Layout design

  • Components soldering

  • Testing, Troubleshooting & Demonstration

  • Mistakes to avoid

Who is this training for

  • People who want to learn system design for IOT applications based on 4G LTE Modem / Cellular connectivity

  • People who want to learn system design based on STM32 microcontroller

  • Students who wants to build their engineering projects based on 4G Modem

  • Hobbyists or professionals who want to build their commercial product around IOT using cellular connectivity

  • People who want to step up in the embedded hardware field, or polish their design skills

  • People who want to get a job in the embedded hardware field.

What will you learn

  • Hardware design & development process for industrial IOT application.

  • Detailed Power supply design process based on SMPS, LDO

  • Li-Ion Battery based system design & battery charger design

  • System design based on STM32 microcontroller & 4G LTE Modem

  • Modem peripherals design : UART, USB 2.0, SD Card, SIM Card, Network & status

  • Modem antenna design : Mains & diversity

  • Protection circuits : ESD, EMI, Transient, overcurrent, overvoltage, reverse polarity

  • Detailed components selection process

  • Detailed procedure to read & understand datasheet

  • Detailed schematic & layout design using Eagle software

  • Detailed procedure to order PCB, stencil & every single component

  • Detailed soldering process using solder paste, stencil, microscope & soldering station

  • Detailed system testing, troubleshooting & demonstration process

  • Overall you will learn to design a hardware for Industrial IOT application based on 4G LTE Modem

Why should you take this training

High industry demand

Internet Of Things based products and their demand is increasing every day. Because of that, the demand for the people responsible for creating them is also increasing.

Industries want to connect their processes or products to the internet, to remotely monitor or control them. To achieve this they need people who can help them automate the process.

If you enjoy building an IOT product & want to work in electronics product development companies, then this training will help you achieve your goal.

It’s everywhere

2G, 3G or 4G cellular connectivity based devices are everywhere. Industries in domains like Automotive, media, petrochemical, consumer appliances or medical industry are heavily dependent on IoT.

Some of the examples of cellular connectivity based devices are

  • a.

    Vehicle tracking Unit (VTU) or GPS trackers used by transport companies like Uber, Ola etc

  • b.

    Wireless camera or IP cameras for remote monitoring

  • c.

    In-built IoT systems in cars for vehicle telematics

  • d.

    Remote monitoring or controlling devices used in industrial automation

Increasing future value

The total installed base of IOT devices worldwide is projected to be around 30 billion units by 2025. The demand for hardware designers and firmware developers is increasing day by day.

Pre - Requisites

  • ● Knowledge of electronics basic components is preferable but not mandatory. All the software/tools that you need for the training would be shared with you during the training as and when you need it.
